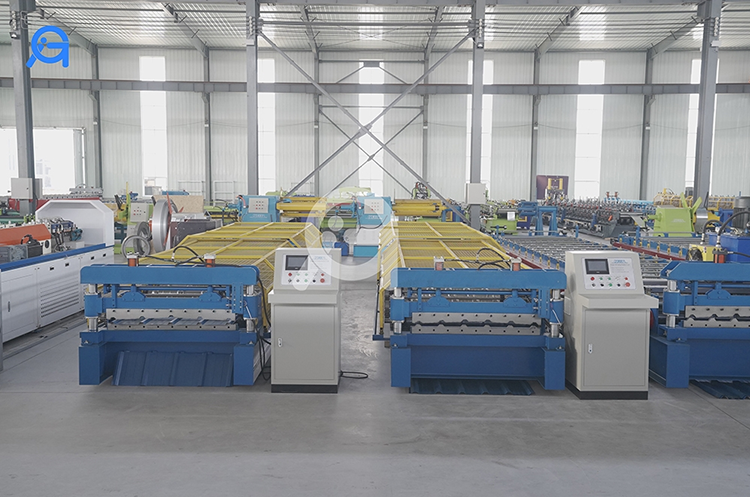

Roll forming machine is made up of feeding, molding, after forming cutting production machine, its color plate appearance smooth and beautiful, uniform paint, high strength, durable, widely used in industrial and civil buildings, such as factory buildings, warehouses, stadiums, exhibition halls, theaters and other rooms and walls.
Operation requirements
Roll forming machine its component departments include: color steel roll forming machine machine machine, PLC computer control system, hydraulic pump station system, automatic after cutting system equipment characteristics: the color steel plate equipment adopts a high level of automatic control software, color steel roll forming machine to achieve production information management.
The automatic control system of the whole unit adopts a highly integrated network, so that the function of the automatic system is better.
The machine features
roll forming machine has many parameters to set, set with text screen. There are two kinds of parameter setting: device parameter setting and user parameter setting. Equipment parameters are: single pulse length, overimpulse, pressure distance, pressure time, cutting time and so on. User parameters include: number of sheets, length, first section, last section, pitch, number of sections, and so on. Color steel roll forming machine machine.
roll forming machine must use high number of pulse input function, high number of input performance is good, choose AB phase strong anti-interference ability. Interrupt function with fixed value to ensure accuracy.
The machine function
1, roll forming machine must use high number of pulse input function, high number of input performance, AB phase strong anti-interference ability. Interrupt function with fixed value to ensure accuracy.
2, tile machine detection part: detection of color steel tile length pulse encoder, pressure type up and down travel switch, cutting tool up and down travel switch, pressure type up and down operation button, cutting tool up and down travel button, emergency stop switch, hydraulic start and stop switch and so on.
3. The executive part of the roll forming machine has a frequency converter drive motor, a hydraulic station motor, two hydraulic solenoid valves of the pressure type, and two hydraulic solenoid valves of the cutter.
4, PLC with 14 input /10 relay output, just meet the input and output requirements. With KDN text screen, you can complete parameter setting, alarm display, help information, production data display and so on.
