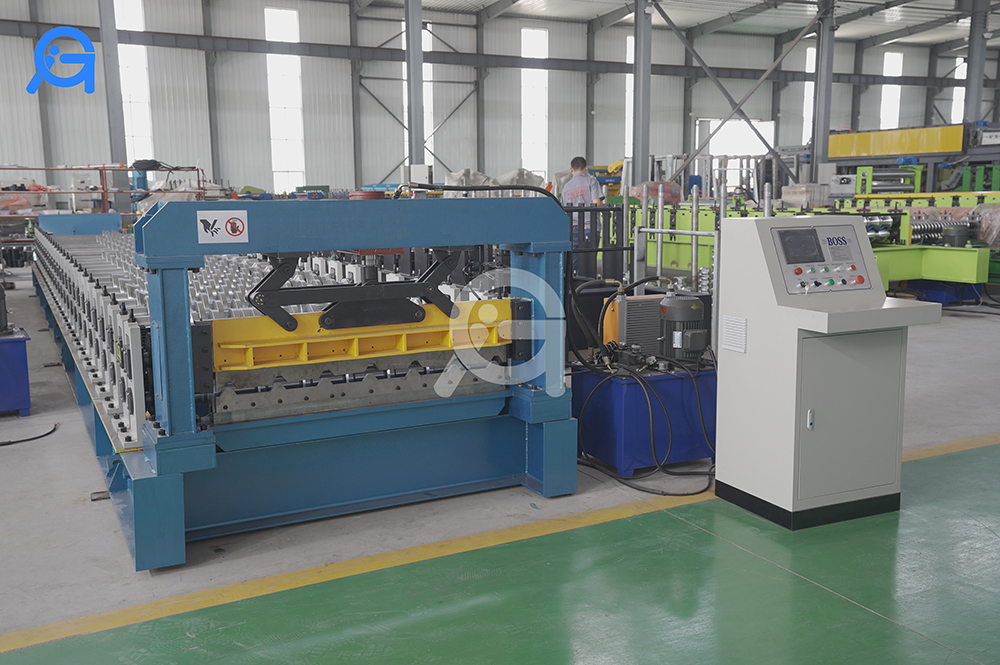

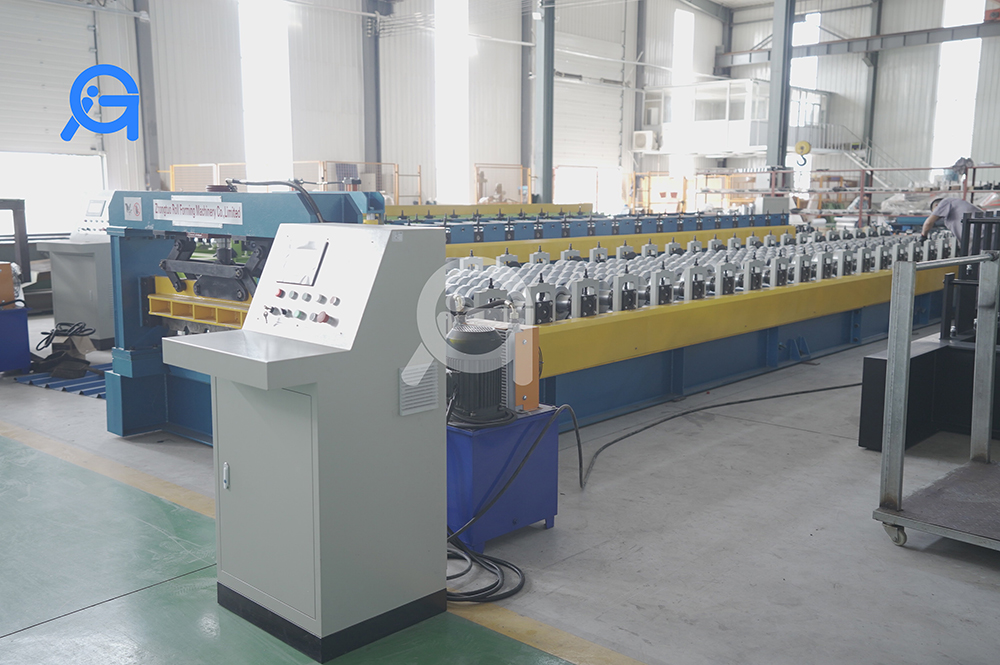

760 r panel roll forming machine

760 r panel roll forming machine

 Raw material of the coil: colored steel, galvanized plate, or aluminum plate

 Raw material thickness: 0.4-0.8mm

 Main power:5.5kw


Product Details

760 r panel roll forming machine

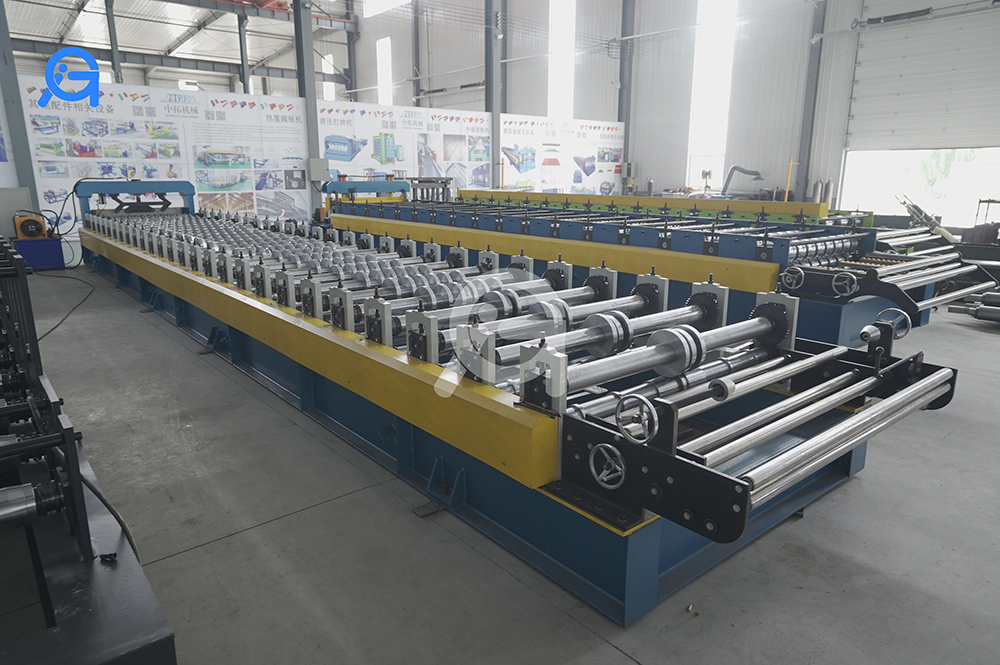

760 r panel roll forming machine Main Roll Forming Machine:

Machine base structure: 350H steel welded

Machine architecture: arch type

Motor power: 5.5kw

Rollers material: 45# steel

Shaft diameters: Φ 80mm +70mmSolid shafts

Forming speed: 0-15m per minute

Power:380v 50hz 3Phase Or as customer request

760 r panel roll forming machine

760 r panel roll forming machine Cutting system:

Material of blades: GCr12 quenched

Tolerance of length: 3m + - 1.5mm

Power supply: Hydraulic power


760 r panel roll forming machine

760 r panel roll forming machine Hydraulic station

Hydraulic motor Power: 4kw

With or without cooling fan: With


760 r panel roll forming machine

760 r panel roll forming machine PLC control system:

Language: Chinese and English or as customized

Voltage: 380V 50Hz 3 Phase (as customer request)

Operating panel: Touching screen and button together

Brand of PLC: Delta (China Taiwan)
